| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | L/C, D/P, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, express, Air, Land |
| Production Capacity: | 10000pcs per month |
| Packing: | plywood |
| Delivery Date: | 3days | Brand Name: | SYF MAG |
|---|---|---|---|
| safety factor: | 3.2 TIMES |

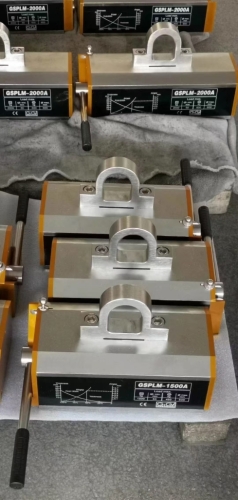

Permanent Magnetic Lifter
PML series
Safety Factor:3.2 Times
Features
Permanent lifting magnets are the most practical, safe and economical solution for ferrous load handling.
Compact and lightweight with strong lifting force and reliable safety.
3.2 safety factor for secure operation.
Permanent magnet design, no power supply required.
Applications
Suitable for steel plates, blocks, round steel and ferrous materials.
Ideal for loading and unloading molds, machined parts and other workpieces.
Widely used in machining, cutting, steel construction, shipbuilding and industrial workshops.
Operation
Equipped with ON/OFF handle for easy operation.
Note: Do not switch to ON position unless placed on ferrous workpieces.
Load characteristics
Tipe of load | MODEL | LOAD MAX kg | THICKNESS MIN.mm | LENGTH MAX.mm |
| plate | PLM100 | 100 | 15 | 1000 |
PLM300 | 300 | 20 | 1500 | |
PLM600 | 600 | 30 | 2000 | |
PLM1000 | 1000 | 40 | 3000 | |
PLM2000 | 2000 | 45 | 3000 | |
PLM3000 | 3000 | 55 | 3000 | |
Diametor Range(mm) | ||||
| round | PLM100 | 100 | 30-100 | 1500 |
PLM300 | 150 | 40-300 | 1500 | |
PLM600 | 300 | 70-400 | 2000 | |
PLM1000 | 500 | 70-500 | 3000 | |
PLM2000 | 1000 | 100-600 | 3000 | |
PLM3000 | 1500 | 100-800 | 3000 | |
