| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CIF,EXW |
| Payment Terms: | L/C, D/P, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, express, Air, Land |
| Production Capacity: | 1000 pcs per month |
| Packing: | Fumigation wooden box |
| Delivery Date: | 15-25 days | Processing Types: | Metal |
|---|---|---|---|
| Processing: | Lathe | Automatic Grade: | Manual |
| Precision: | Precision | Workpiece and Weight: | Instrument Machine Tool |
| Controlling Mode: | Others | Usage: | General |
| Brand Name: | SYF MAG | Nominal holding force: | 180 N/cm² |
| Pole plate wearing limit: | 5-8mm | Magnetic field height: | 8mm |
| Parallelism, flatness and squareness: | 0.005mm/100mm | pole pitch: | radial |
| Magnets: | permanent Neodymium magnets | structure: | Coolant&waterproof |
| Used: | grinding and lathe | workpieces: | cylindrical and ring-shaped workpieces |
| centre hole: | yes |
Radial pole round permanent magnetic chuck

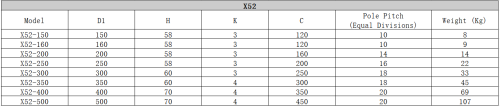

X52 series
Holding Force:180 N/cm²
Pole Pitch:radial pole
for grinding machine and lathe workholding clamping
Strong holding force,
Low magnetic field,
Less remaining magnetism,
light switching force,
Coolant&waterproof structure,
Safe and reliable,
Long useful life.
Use:
Used for surface grinder,cylindrical grinder,internal grinder and lathe.
Best for cylindrical and ring-shaped workpieces.
Concentric grooves to simplify workpiece alignment.
Through hole possible up to maximum diameter.
Supplied as standard without through hole in centre.
Available with flange on request.
Features:
Magnets:strong permanent neodymiumiron-boron magnets.
Magnetic field:dense, concentrated,without any stray fields, preventing magnetization of the tool.
Turn on/off mothed: hexagon wrench swing, light switching force.
Nominal holding force: 180 N/cm²
Pole pitch:radial pole.
Magnetic field height: 12 mm
Pole plate wearing limit: 5 mm(Dia 150-300mm),8mm(Dia350-400mm),which the top plates can be drilled and tapped.
Parallelism, flatness and squareness:0.005mm/100mm
Coolant&waterproof structure,can sink in liquid.
Category: permanent magnetic chuck
