| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | L/C, D/P, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, express, Air, Land |
| Production Capacity: | 500pcs per month |
| Packing: | Fumigation wooden box |
| Delivery Date: | 15-25days | Processing Types: | Metal |
|---|---|---|---|
| Processing: | Grinding Machine | Automatic Grade: | Manual |
| Precision: | Precision | Workpiece and Weight: | Instrument Machine Tool |
| Controlling Mode: | Others | Usage: | General |
| Brand Name: | SYF MAG | Nominal holding force: | 120 N/cm² |
| Angle precision: | 0.007/100mm | Parallelism, flatness and squareness: | 0.005mm/100mm |
| pole pitch: | 0.5+1.5mm |

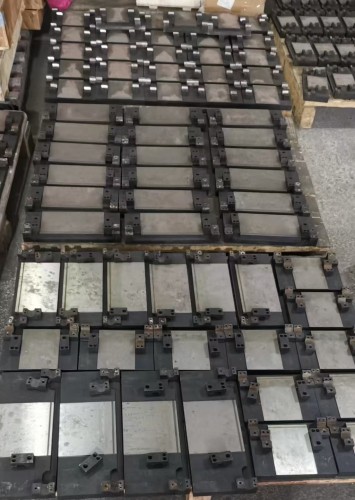

single tilting permanent magnetic chuck
X 42 series
Holding force:120 N/cm²
High holding force
Low magnetic field
Low residual magnetism
Light switching force
Coolant and waterproof design
Safe, reliable and long service life
Features
Large effective working area
Rigid angle locking without deformation
Hardened alloy steel construction
Angular precision: 0.007/100 mm
Low profile for enhanced clearance
Applications
Versatile for high-precision grinding
High accuracy after precision machining
Strong magnetic force with low remanence
Stable surface accuracy with on/off operation
Fine 1.55 mm pole pitch, suitable for small workpieces
Category: permanent magnetic chuck
