| Min. Order: | 1 Piece/Pieces |
|---|---|
| Payment Terms: | T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, express, Air, Land |
| Packing: | carton |
| Surface treatment: | polishing and sand blasting |
| The shell material: | SS304, SS316 |
| The magnetic strength of Dia.25mm magnetic bar grade: | 10000-15000Gauss | Operating temperature grade less than: | 80℃, 100℃, 120℃, 150℃,180℃,200℃,300℃, |
|---|---|---|---|
| Sizes and Shape: | any sizes and shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon | Cleaning method: | regular type and easy cleaning type |

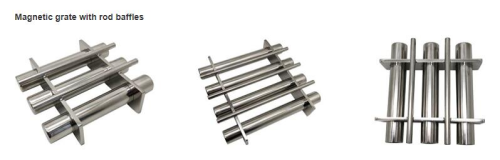

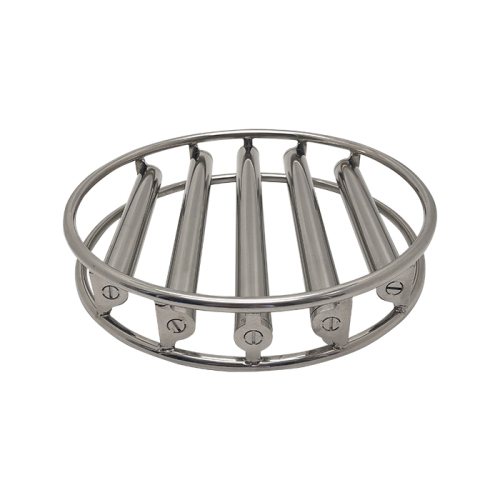

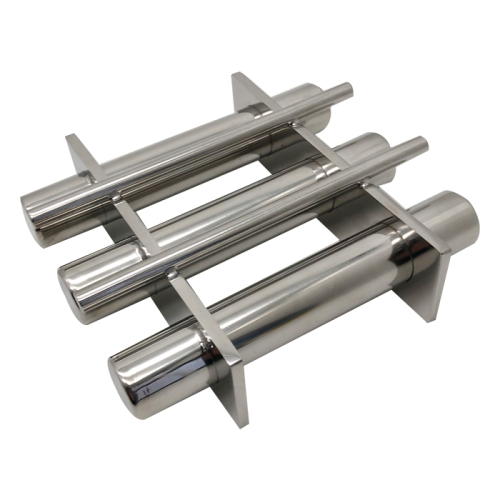

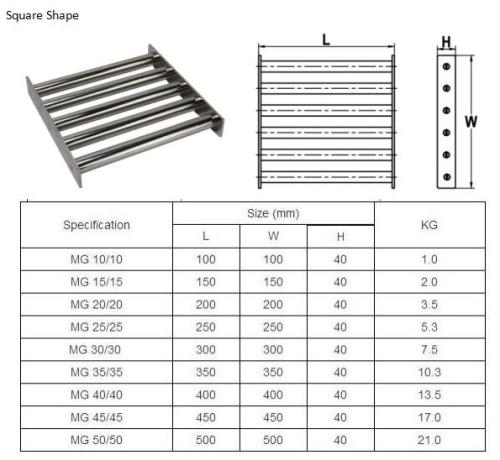

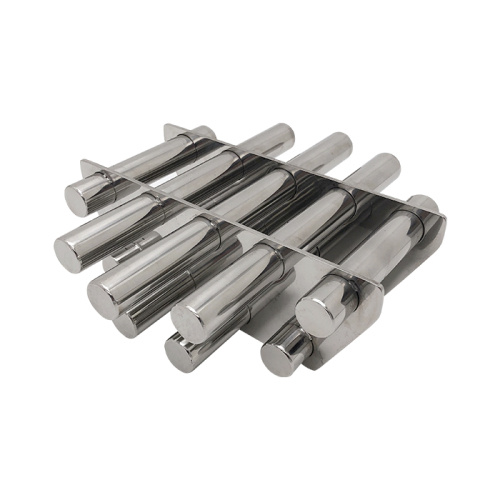

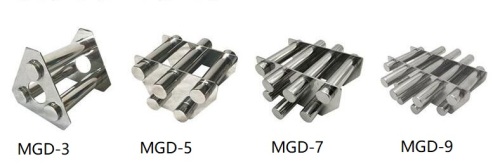

Magnetic grate are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus or irregular polygon, to suit for different position.
Center distance of bars is usually 2 inches.
Magnetic grates are designed for product purity of free flowing materials such as carbon black, chemicals, cosmetics, plastics, food industries and so on.
These units are easily installed in any hopper or floor opening, chute or duct. It makes product stream free flowing products to come in directly contact with the grate. When anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets in magnetic fields. By this solution, your equipment and facilities will be protected, and the products will be safe for consumption.
Magnetic grate for injection molding processing

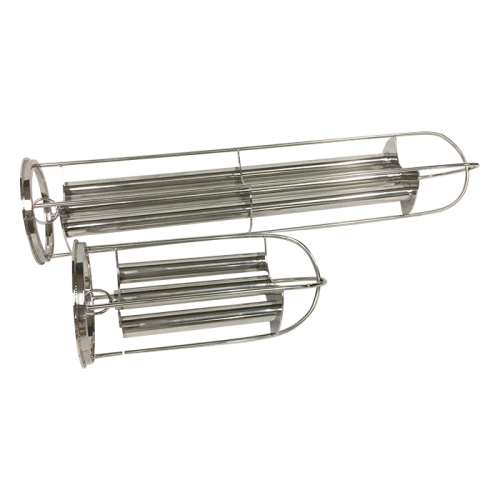

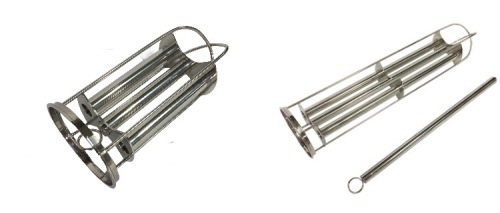

Magnetic grate for 1# and 2# filter bag
Category: Magnetic Separator
