| Trade Term: | FOB,CFR,CIF,DDP,DAP,EXW |
|---|---|
| Payment Terms: | T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, express, Air, Land |
| Packing: | carton |
| The air gap between inner rotor and outer rotor: | customized |
| Operating temperature: | NdFeB less than 140℃ , Sm2Co17 less than 280℃ |
| Dynamic balancing grade for inner & outer rotor: | G 6.3 | Inner rotor \ Sealing can Materials: | Stainless Steel 316 \ 316L |
|---|---|---|---|
| Outer rotor \ Flange Materials: | Carbon steel zinc-plated | Pressure resistance of sealing can: | 1~2 MPa |

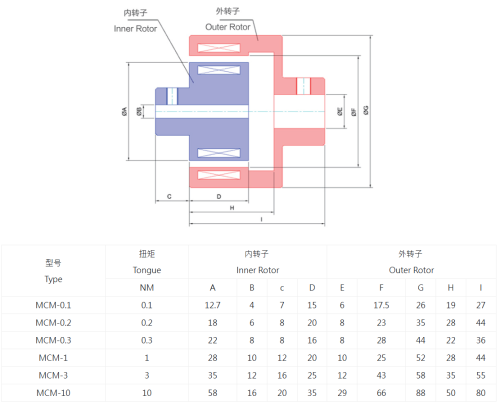

MCM (0.1~10NM) magnetic coupling

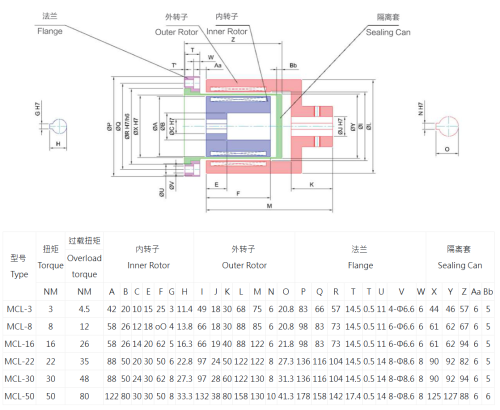

MCL (3-80NM) magnetic coupling
Category: magnetic assemblies
